Dry Powder Filling Isolator

Robotic filling and capping line for dry powder device

Robotic filling and capping line for powder devices under turbulent flow isolator.

The line consists of 4 chambers: pre-chamber for introduction of empty devices, pre-chamber for cap insertion, main chamber, pre-chamber for full device output.

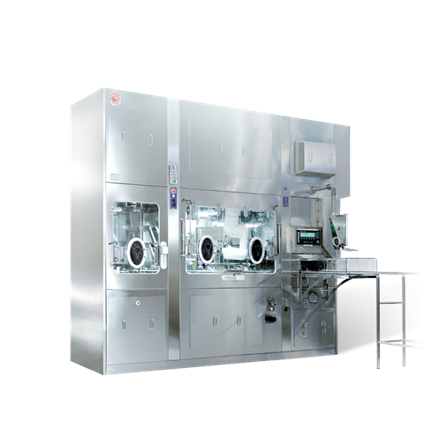

Dry Powder Filling Isolator – Robotic filling and capping line for dry powder device

• Extremely compact footprint
• Isolator technology to guarantee OEB4 containment level
• Ability to work with 3 Different Powder Dosing Heads
• 100% weight check
• Non-compliant product rejection (empty device)
• Controlled Capping
• Rejection of non-compliant product (full device)
• Wash-In-Place for the entire process chamber by use of spray guns

DRY POWDER FILLING ISOLATOR FEATURES

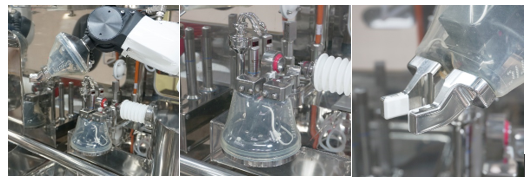

The machine is fully automatic and equipped with two anthropomorphic robots in the process chamber.

Material inlet and outlet is performed by the operator with the aid of on-purpose designed trays.
